1、 Overview of diaphragm metering pump

JXM, JWM and JCM are reciprocating compound dosing pumps designed and developed by our company. JXM series pumps are

characterized in that the diaphragm is mechanically driven. The diaphragm cancels the composite structure of PTFE membrane,

rubber and iron core, and increases the diaphragm stroke. Based on the working principle of variable eccentric mechanism, the

stroke adjustment mechanism replaces the effective stroke adjustment design of traditional eccentric cam. The design reduces the

pulsation degree of pressure and flow, so that the flow is in the range of 10-100%, and the stability accuracy can be controlled

within ± 2%.

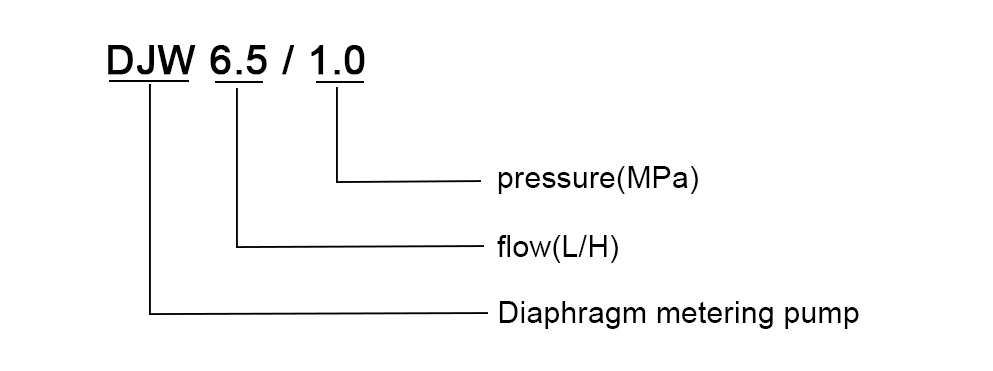

2、Significance of diaphragm metering pump model

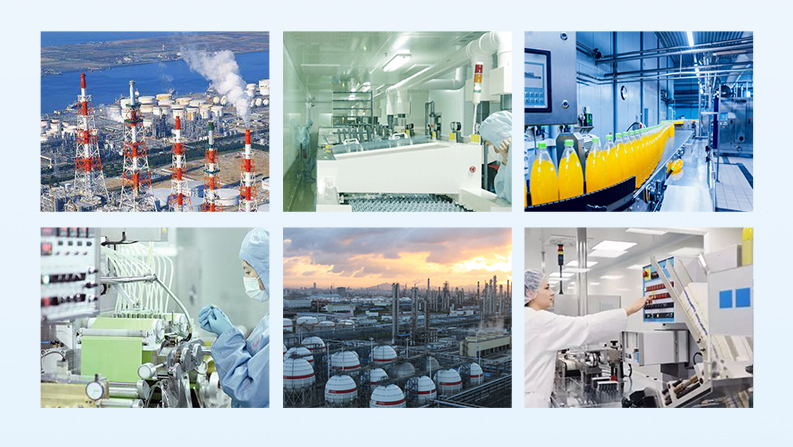

                                           Application scenario of diaphragm metering pump

Diaphragm metering pump has been widely used in various fields, including pharmaceutical, food and beverage and

petrochemical industries. It undertakes the metering and addition of highly corrosive, toxic, high viscous and high-pressure

media in the process.
