1、 Uhb-zk Product Overview

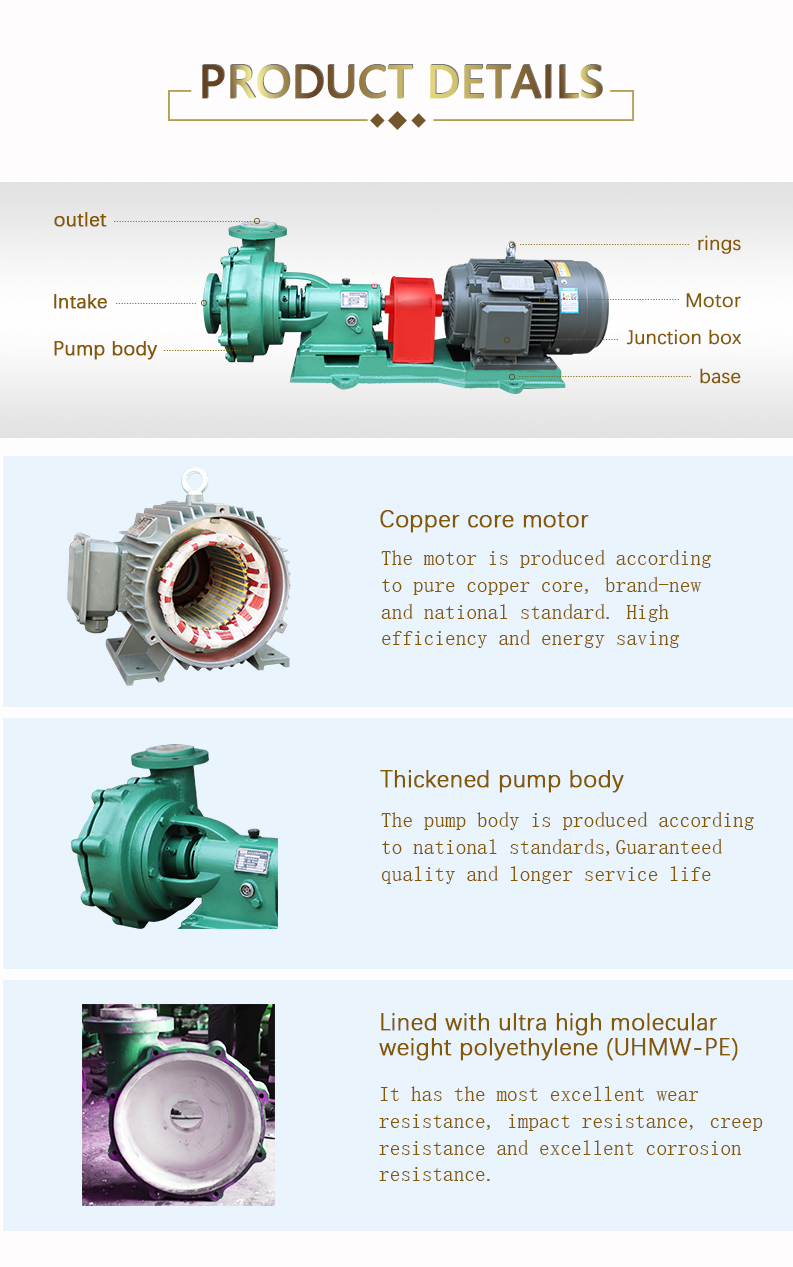

The anti-corrosion mortar pump series products are suitable for conveying corrosive media containing fine

particles or crystals. They are made of steel lined high molecular weight polyethylene molding process and

have corrosion resistance. The structural design is cantilever front open type and the impeller is semi open

type (without front cover plate), which improves the trafficability of the flow channel and enables the

particles and impurities in the medium to pass through the pump chamber quickly. The shaft seal is K-type

fluororubber seal ring with cooling water jacket.

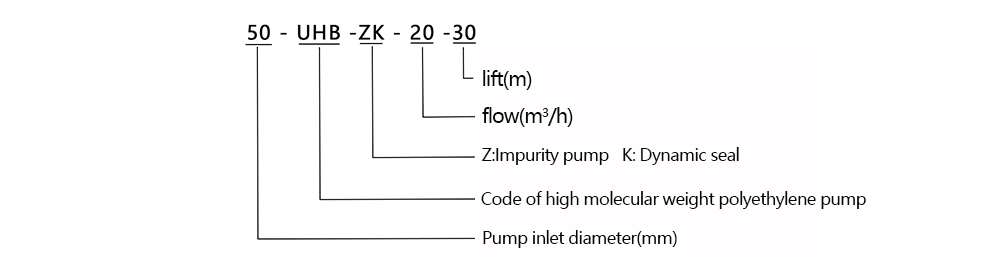

2、 The significance of uhb-zk product model

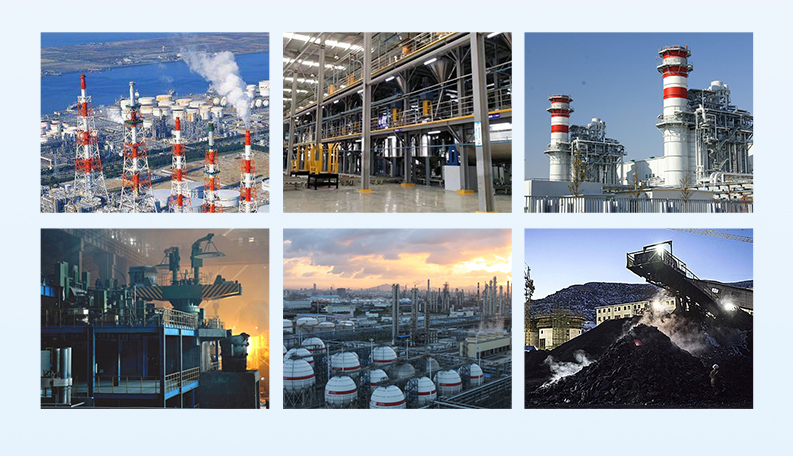

                                                      Application range of uhb-zk mortar pump

Phosphate fertilizer industry, non-ferrous metal smelting industry, chemical industry and other enterprises,

chlor alkali industry: water treatment industries such as hydrochloric acid, liquid alkali and electrolyte, iron

and steel enterprises and coal industry
